After 1988 a new rule was established for the Amewrica's Cup. Boats of the IACC are larger than 12-Metre yachts with much finer and lighter hulls

utilizing composite construction. The ballast to displacement ratio of these boats is very high with a deep lead bulb of about 44,000 pounds

supported by a slim steel strut keel. The IACC Rules set stringent design criteria and established a design formula which forces designers to balance

boat length against sail area and displacement. The Rule formula is:

*R*** = (***L*** + 125 square-root[***S***] - 9.8 cube-root[***D***])/0.679 <= 24.0 meters**

where:

* L* is the rated length in meters; *S* is the sail area (the sum of the foretriangle and mainsail area) in square meters; and *D* is the displacement in

cubic meters.

When the class was first introduced for the 1992 Americaâ€™s Cup, the IACC rule contained a maximum beam limit of 5.5 metres, and the

competing yachts were all close to this limit. Boats of this vintage also had a great deal of topside flare and low midship area coefficient values

During the years that followed, the beam of IACC yachts has progressively reduced until today they are less than 3.5 metres wide. Topside flare is

now close to zero and CM values have increased to the point that the boats are relatively boxy with slab sides.

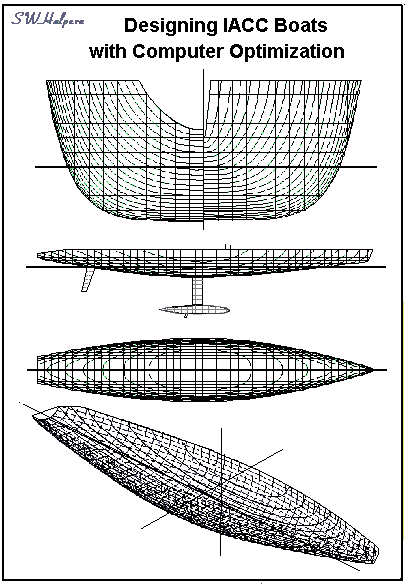

The complexity of the IAAC design incorporates many factors including a measure of stability, and sail carrying ability, in addition to lift and drag

performance. A narrower hull may have less resistance, but it may also have less stability resulting in less sail carrying ability. There is no way of

knowing without detailed computer analysis whether a yacht would be faster or slower overall. It is necessary to combine hull lift and drag data with

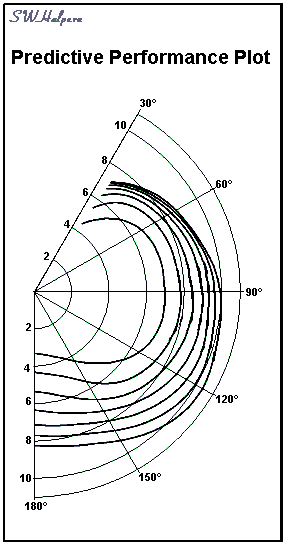

information about the weight, center of gravity and sail plan of the yacht to produce performance curves that prvide a set of polar plots which tell the

designer how the boat is expected to perform for different wind strengths and points of sail.

utilizing composite construction. The ballast to displacement ratio of these boats is very high with a deep lead bulb of about 44,000 pounds

supported by a slim steel strut keel. The IACC Rules set stringent design criteria and established a design formula which forces designers to balance

boat length against sail area and displacement. The Rule formula is:

cubic meters.

When the class was first introduced for the 1992 Americaâ€™s Cup, the IACC rule contained a maximum beam limit of 5.5 metres, and the

competing yachts were all close to this limit. Boats of this vintage also had a great deal of topside flare and low midship area coefficient values

During the years that followed, the beam of IACC yachts has progressively reduced until today they are less than 3.5 metres wide. Topside flare is

now close to zero and CM values have increased to the point that the boats are relatively boxy with slab sides.

The complexity of the IAAC design incorporates many factors including a measure of stability, and sail carrying ability, in addition to lift and drag

performance. A narrower hull may have less resistance, but it may also have less stability resulting in less sail carrying ability. There is no way of

knowing without detailed computer analysis whether a yacht would be faster or slower overall. It is necessary to combine hull lift and drag data with

information about the weight, center of gravity and sail plan of the yacht to produce performance curves that prvide a set of polar plots which tell the

designer how the boat is expected to perform for different wind strengths and points of sail.

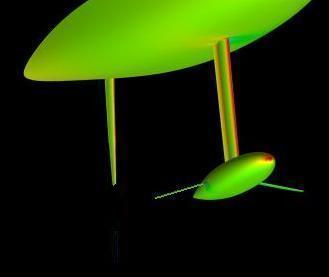

Flow analysis of the appendages

(keel, bulb, winglets, and rudder) of

an IACC class design showing the

distribution of dynamic pressure along

the various surfaces.

(keel, bulb, winglets, and rudder) of

an IACC class design showing the

distribution of dynamic pressure along

the various surfaces.

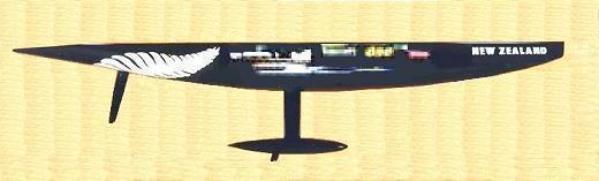

winner

winner

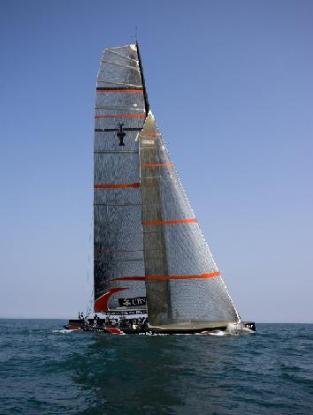

Note the evolution in sail design from 1995 to 2007 in America's Cup racing yachts.
